The crystal chemistry of elsmoreite from the Hemerdon (Drakelands) mine, UK: hydrokenoelsmoreite-3C and hydrokenoelsmoreite-6R

A crystallographic and chemical study of two 'elsmoreite' samples (previously described as 'ferritungstite') from the Hemerdon mine (now known as the Drakelands mine), Devon, United Kingdom has shown them to be two different polytypes of hydrokenoelsmoreite. Hydrokenoelsmoreite-3C(HKE-3C) crystallizes in space group , with the unit-cell parameter a = 10.3065(3) Å. Hydrokenoelsmoreite-6R (HKE-6R) crystallizes in space group , with the unit-cell parameters a = 7.2882(2) Å and c = 35.7056(14)Å. Chemical analyses showed that both polytypes have Na and Fe/Al substitution giving the formulae: (Na0.28Ca0.04K0.02(H2O)0.20⁏1.46)∑2.00(W1.47Fe3+ 0.32Al0.21As5+ 0.01)∑2.00[O4.79(OH)1.21]∑6.00·(H2O)(3C) and (Na0.24Ca0.04K0.03(H2O)0.63⁏1.06)∑2.00(W1.42Fe3+ 0.49Al0.08As5+ 0.01)∑2.00[O4.65(OH)1.35]∑6.00·(H2O)(6R). The doubling of the unit cell in the 6R phase is due to ordering of Na and ( ,H2O) in the A site; no long-range ordering is observed between W and Fe/Al in the B site.

Citation

Mills, S., Christy, A., Rumsey, M., & Spratt, J. (2016). The crystal chemistry of elsmoreite from the Hemerdon (Drakelands) mine, UK: Hydrokenoelsmoreite-3C and hydrokenoelsmoreite-6R. Mineralogical Magazine, 80(7), 1195-1203.

Type

Journal Article

Item Description

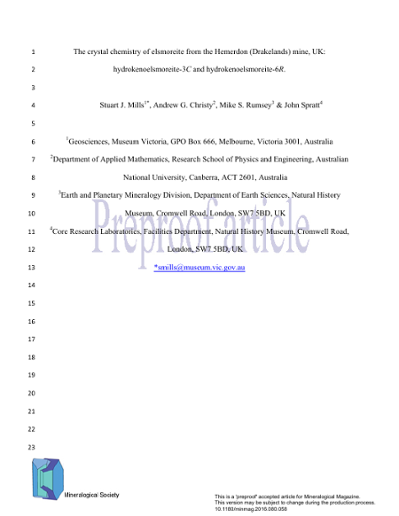

© The Mineralogical Society of Great Britain and Ireland 2017. The attached document is the authors’ preproof accepted version of the journal article, which is made available under a Creative Commons CC-BY-NC-ND license: https://creativecommons.org/licenses/by-nc-nd/4.0/. You are advised to consult the publisher’s version if you wish to cite from it.
